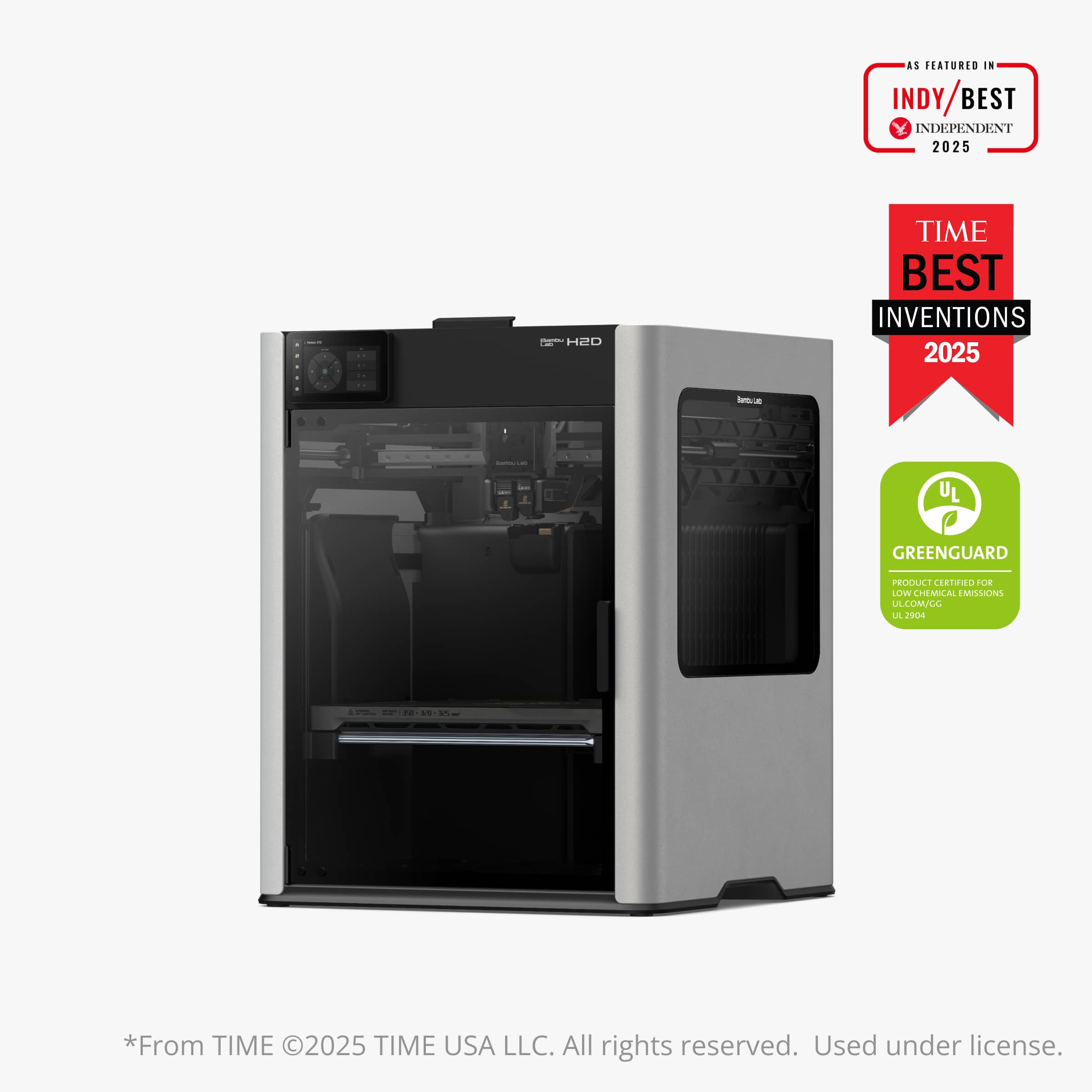

Bambu Lab H2D

The Bambu Lab H2D is a high-performance desktop 3D printer engineered for precision, speed, and advanced multi-material workflows. Built with a dual-nozzle architecture and industrial-grade motion control, the H2D is designed to deliver consistent, high-resolution prints while supporting engineering-grade materials and demanding applications.

Core Technology

• Dual-Nozzle Multi-Material System
  Independent dual-nozzle setup enables efficient multi-material and multi-color printing with reduced purge waste and improved reliability.
• Closed-Loop Servo Extruder
  Advanced extrusion system with real-time feedback control ensures precise filament flow, minimizing under/over-extrusion and enhancing print consistency.
• Optical Motion Calibration (5μm Resolution)
  Integrated vision-based encoder system delivers ultra-fine motion calibration accuracy down to 5 microns, significantly improving dimensional accuracy and surface quality.

Build Volume & Mechanical Design

• Build Volume: 350 × 320 × 325 mm
• Rigid Frame Construction: Engineered for stability at high speeds
• Enclosed Build Chamber: Supports controlled thermal environments for engineering materials

Thermal & Material Capabilities

• Maximum Nozzle Temperature: 350°C
• Active Heated Chamber: Up to 65°C
• High-Temperature Material Support: Compatible with advanced filaments requiring stable thermal conditions

Modular Expansion System

• Optional Laser & Cutting Module Support
  Compatible with 10W and 40W laser modules and cutting attachments, enabling hybrid manufacturing workflows including engraving and material cutting.

Motion System & Precision

• High-Precision Motion System: Optimized for speed and accuracy
• Vision Encoder Feedback Loop: Continuous positional verification for improved layer alignment
• Ultra-Fine Layer Capability: Enables high-detail prints suitable for professional applications

Connectivity & Compliance

• Cybersecurity Compliance:
  Designed in accordance with:
  • EU RED Article 3.3 (d)(e)
  • ETSI EN 303 645 V2.1.1:2020

Ensures secure device communication and protection against common network vulnerabilities.

Hardware Compatibility

• Supports a wide range of nozzle types including stainless steel and wear-resistant variants
• Compatible with multiple build plates optimized for different materials (smooth PEI, engineering plates, high-adhesion surfaces)
