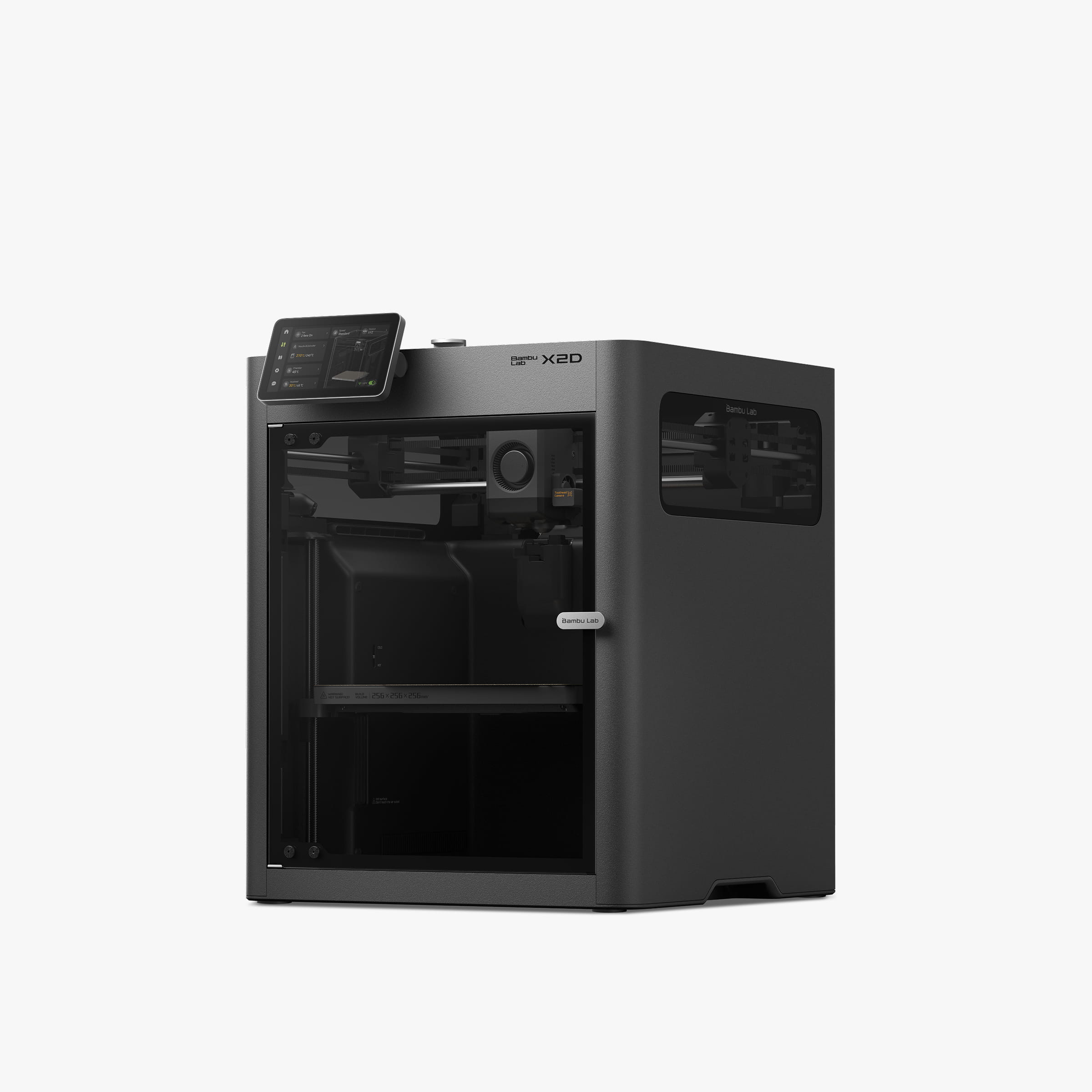

Bambu Lab X2D

The Bambu Lab X2D is a high-performance FDM 3D printer built for precision manufacturing without the need for an Automatic Material System (AMS). This standalone configuration focuses on advanced dual-nozzle functionality, intelligent calibration, and stable high-speed printing, making it ideal for users who require reliability, material flexibility, and professional-grade output in a simplified setup.

Core Technical Features

Dual-Nozzle Architecture

• Independent main and auxiliary nozzles
• Dedicated support printing using separate material
• Reduced contamination between model and support materials
• Faster nozzle switching via mechanical gear-and-trigger system
• Optimized for:
  • Complex overhangs
  • Internal structures
  • Multi-material prints (manual filament loading)

High-Temperature Printing System

• Maximum nozzle temperature: 300°C
• Actively heated chamber up to 65°C
• Enables printing with engineering-grade materials:
  • ABS
  • ASA
  • Nylon
• Ensures consistent thermal conditions for strong layer adhesion and minimal warping

Closed-Loop Servo Extrusion

• PMSM (Permanent Magnet Synchronous Motor) extruder
• Real-time feedback loop at 20 kHz sampling rate
• Maintains constant extrusion pressure
• Eliminates micro-inconsistencies for:
  • Smooth surfaces
  • Accurate dimensions

Advanced Motion Control & Calibration

• Flow Dynamics Calibration with nonlinear modeling
• Automatically compensates for:
  • Nozzle wear
  • Filament inconsistencies
  • Environmental variations
• Active Vibration Compensation reduces ringing and ghosting
• Ensures repeatable, high-precision output

Dual-Intake Cooling System

• Symmetrical airflow design (left & right intake)
• Rapid solidification of extruded filament
• Improves:
  • Bridging performance
  • Overhang sharpness
  • Surface detail

AI Monitoring & Smart Sensors

• Integrated AI camera system:
  • Liveview Camera
  • Toolhead Camera
• Detects:
  • Print failures (spaghetti)
  • Nozzle clogs
  • Build plate misalignment
• 31 onboard sensors track:
  • Filament movement
  • Temperature stability
  • Machine operation

Build Volume & Physical Specs

• Build Volume:
  • 256 × 256 × 260 mm³ (single nozzle)
  • 235.5 × 256 × 256 mm³ (dual-nozzle mode)
• Dimensions: 392 × 406 × 478 mm
• Weight: 16.25 kg
• Construction: Plastic, steel, glass, and metal

Extruder & Toolhead

• Hardened steel gears (main & auxiliary extruders)
• Standard nozzle: 0.4 mm
• Supported sizes:
  • 0.2 mm
  • 0.4 mm
  • 0.6 mm
  • 0.8 mm
• Filament diameter: 1.75 mm
• Integrated filament cutter
• Tool-free nozzle replacement system

Filament Compatibility (Standalone Use)

• Manual filament loading (no AMS required)
• Compatible materials:
  • PLA
  • PETG
  • TPU
  • ABS / ASA
  • Nylon
• Optimized filament path with AI monitoring

Air Filtration & Safety

• Triple-layer filtration system:
  • G3 pre-filter
  • H12 HEPA filter
  • Activated carbon filter
• Low emissions certified (UL 2904)
• Suitable for indoor environments

Noise & Operation

• Operating noise: below 50 dB
• Active motor noise cancelation
• Optimized airflow for quiet performance
• Internal lighting for monitoring and time-lapse

Connectivity & Firmware

• Regular firmware updates (feature and performance improvements)
• Remote monitoring via live camera feed
• Smart diagnostics and print optimization

Compliance

• EU RED Article 3.3(d)(e) compliant
• ETSI EN 303 645 V2.1.1 cybersecurity standard
