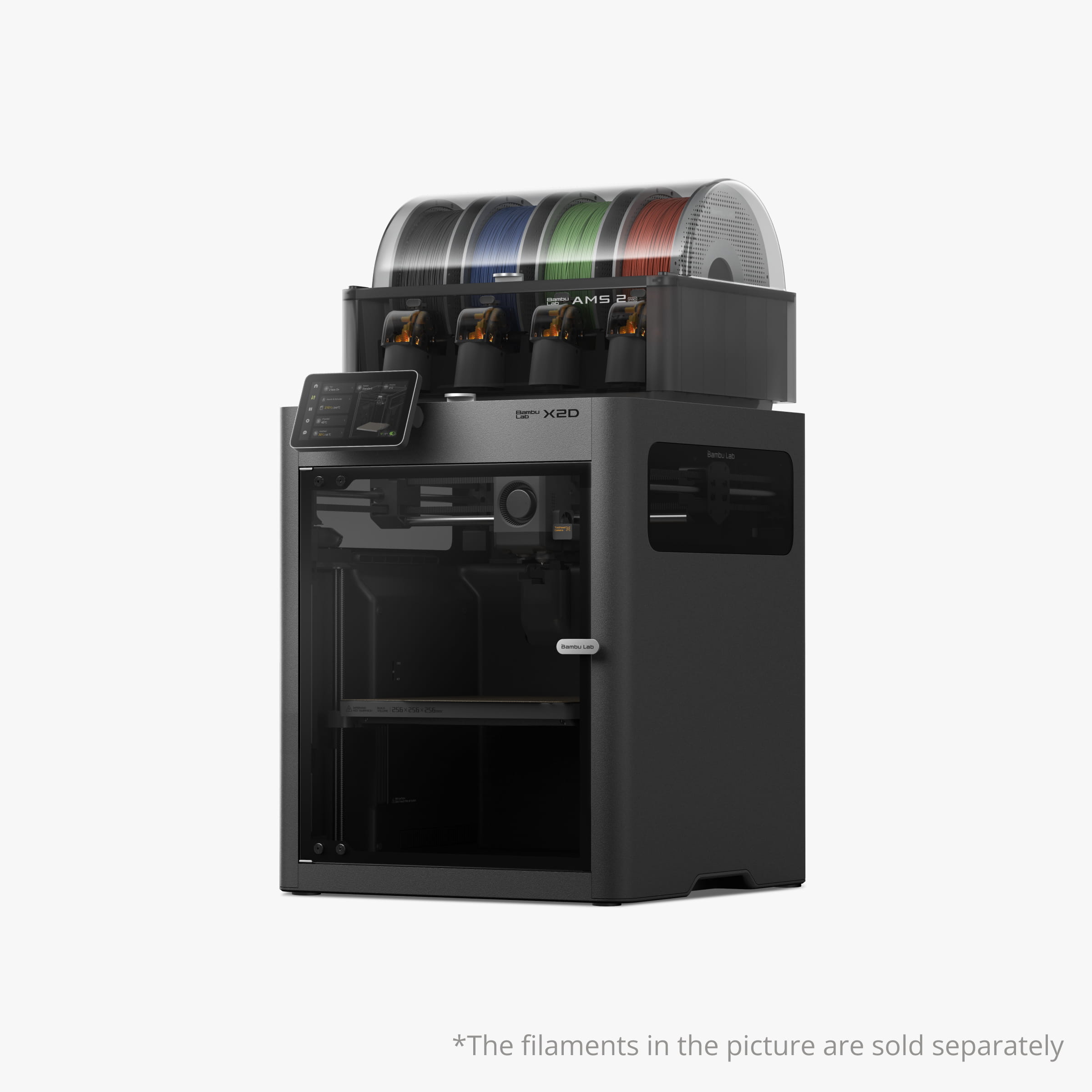

Bambu Lab X2D Combo

The Bambu Lab X2D is a next-generation FDM (Fused Deposition Modeling) 3D printer engineered for precision, multi-material capability, and intelligent automation. Designed to bridge professional-grade performance with user-friendly operation, the X2D introduces a dual-nozzle architecture, advanced motion control, and AI-assisted monitoring for consistent, high-quality results across a wide range of materials.

Key Technical Features

Dual-Nozzle Printing System

• Independent main and auxiliary nozzles for multi-material and support printing
• Faster color transitions with reduced filament waste
• Dedicated support material extrusion for cleaner removal and complex geometries
• Capable of combining materials such as PLA + TPU in a single print

High-Temperature & Active Heating System

• Maximum nozzle temperature: 300°C
• Actively heated chamber up to 65°C
• Optimized for engineering-grade filaments:
  • ABS
  • ASA
  • Nylon
• Uniform thermal distribution ensures strong layer adhesion and reduced warping

Closed-Loop Servo Extruder System

• Powered by a Permanent Magnet Synchronous Motor (PMSM)
• Real-time torque and position feedback at 20 kHz sampling rate
• Reduces extrusion inconsistencies and surface artifacts
• Maintains stable filament flow and smooth surface finish

Precision Motion & Calibration

• Flow Dynamics Calibration with nonlinear compensation
• Adaptive calibration accounts for:
  • Nozzle wear
  • Filament condition
  • Residue buildup
• Active Vibration Compensation eliminates ringing and ghosting
• Achieves high-detail prints with consistent repeatability

Dual-Intake Cooling System

• Symmetrical airflow from left and right intakes
• Rapid cooling of extruded filament
• Enhances:
  • Overhang quality
  • Bridging performance
  • Dimensional accuracy

AI Monitoring & Sensor System

• Dual camera system:
  • AI Liveview Camera
  • Toolhead Camera
• Real-time detection of:
  • Spaghetti failures
  • Nozzle clogs
  • Build plate misplacement
• 31 integrated sensors monitor:
  • Filament path
  • Thermal conditions
  • Mechanical performance

Build Volume & Physical Specifications

• Build Volume:
  • 256 × 256 × 260 mm³ (main nozzle)
  • Dual-nozzle effective volume: 235.5 × 256 × 256 mm³
• Dimensions: 392 × 406 × 478 mm
• Weight: 16.25 kg
• Frame Materials: Plastic, steel, glass, and metal

Toolhead & Extrusion System

• Hardened steel extruder gears (main & auxiliary)
• Interchangeable nozzle sizes:
  • 0.2 mm
  • 0.4 mm (standard)
  • 0.6 mm
  • 0.8 mm
• Filament diameter: 1.75 mm
• Built-in filament cutter
• Tool-free nozzle replacement mechanism

Filament Handling & Compatibility

• Full filament path AI detection system
• Supports multi-material workflows via AMS integration
• Compatible with:
  • PLA
  • PETG
  • TPU
  • ABS / ASA
  • Nylon
• Requires 4-in-1 PTFE Adapter for extended AMS setups

Air Quality & Safety

• Three-stage filtration system:
  • G3 pre-filter
  • H12 HEPA filter
  • Activated carbon layer
• Certified low emissions (UL 2904 standard)
• Designed for indoor operation with reduced VOCs and particles

Noise & Usability

• Noise level: < 50 dB under typical operation
• Active motor noise cancelation
• Optimized airflow ducts for quieter performance
• Bright chamber lighting for remote monitoring

Connectivity & Software

• Continuous firmware updates (approx. quarterly)
• Smart diagnostics and print optimization
• Remote monitoring with live video feed
