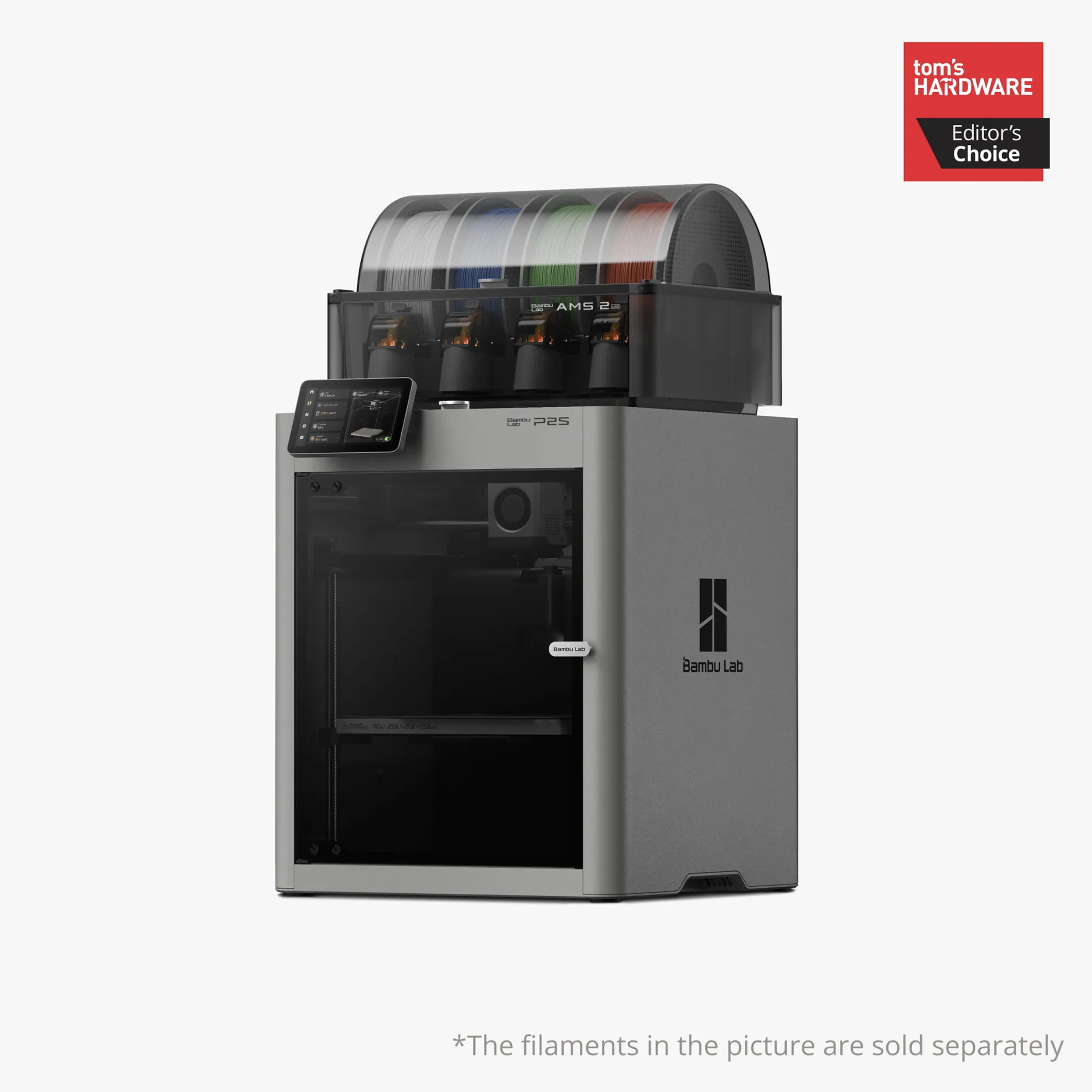

Bambu Lab P2S Combo

The Bambu Lab P2S Combo is a high-performance FDM 3D printing system engineered for precision, automation, and advanced multi-material production. Combining the P2S printer with the AMS 2 Pro, this configuration delivers intelligent filament management, high-speed extrusion, and controlled environmental printing for professional-grade results.

Core Printing Technology

• Printing Method: Fused Deposition Modeling (FDM)
• Build Volume: 256 × 256 × 256 mm
• Chassis Construction: Plastic and steel frame with glass enclosure
• Fully Enclosed Chamber: Optimized for stable thermal conditions and engineering-grade materials

Extrusion & Toolhead System

• Extruder Type: PMSM high-precision permanent magnet synchronous motor
• Maximum Extrusion Force: 8.5 kg
• Sampling Rate: 20 kHz real-time resistance monitoring
• Nozzle Material: Hardened steel
• Max Nozzle Temperature: 300°C
• Nozzle Sizes Supported: 0.2 / 0.4 / 0.6 / 0.8 mm
• Quick-Swap Hotend: One-clip mechanism for rapid nozzle replacement
• Filament Cutter: Integrated automatic cutting system

Intelligent Calibration & Print Accuracy

• Flow Dynamics Calibration: Eddy current pressure sensor with active compensation
• Auto Flowrate Adjustment: Real-time extrusion tuning across layers
• AI Error Detection: Computer vision-based monitoring (spaghetti, clogging, failure detection)
• Processing Unit: Integrated NPU (2 TOPS) for real-time analysis

Cooling & Thermal Management

• Adaptive Airflow System: External cold-air intake with internal heat retention
• Chamber Capability: Up to 50°C passive chamber temperature
• Air Filtration: Carbon filter for enclosed printing environment
• Heatbed Temperature Range: 35°C – 110°C
• Build Plate: Flexible steel plate

AMS 2 Pro – Multi-Material System

• Multi-Color Printing: Supports automated filament switching
• Filament Slots: Expandable up to 20 colors (with multiple AMS units)
• Feeding Speed: 60% faster filament switching
• Filament Drying System: Active venting drying (30% faster than sealed systems)
• Humidity Control: Airtight storage with automated venting
• Connectivity: 6-pin cable integration with printer

Connectivity & Monitoring

• Display: 5-inch touchscreen with 2nd-generation UI
• Camera: 1080P high-frame-rate monitoring with timelapse support
• Lighting: Integrated high-intensity LED system
• Wireless: Dual-band Wi-Fi for remote control and monitoring

Material Compatibility

• Filament Diameter: 1.75 mm
• Supported Materials: PLA, PETG, TPU, and engineering-grade filaments
• Fiber-Reinforced Materials: Supported via hardened extrusion system
• Drying Integration: AMS maintains optimal filament condition during storage and printing

Physical Specifications

• Printer Dimensions: 392 × 406 × 478 mm
• Recommended Space: 500 × 500 × 950 mm
• Net Weight (Combo): 16.4 kg
• Gross Weight (Combo): 21.33 kg

System Features

• Fully enclosed high-stability printing environment
• Real-time AI-driven print monitoring and failure detection
• High-speed, high-force extrusion with precision control
• Multi-material and multi-color printing via AMS 2 Pro
• Integrated filament drying and humidity management
• Advanced airflow and cooling architecture
• Remote monitoring with high-resolution live view

Compliance & Engineering

• Cybersecurity compliant with EU RED Article 3.3(d)(e)
• Conforms to ETSI EN 303 645 V2.1.1:2020 standards
